Here are some shots from the tallest building in Downtown Miami.

PDF Coverage map for WIMP-LP, Channel 25

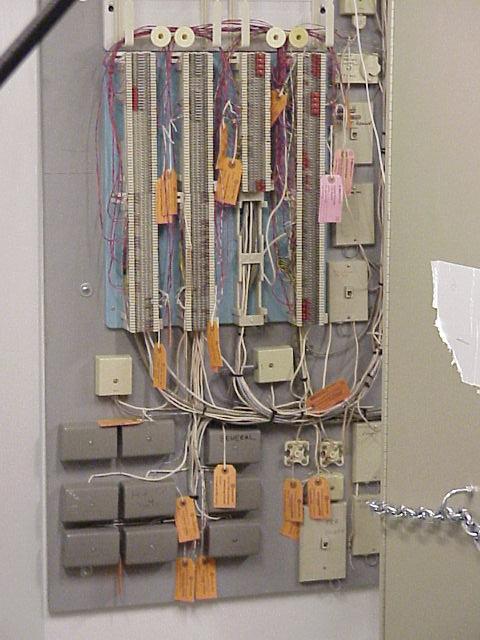

Telco Demarc


TV Channel 25 Transmitter, 1 kW

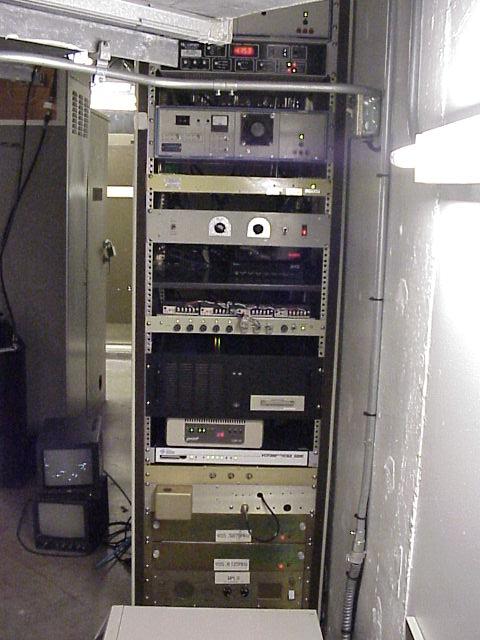

WPLG ENG Receiver, rooftop camera control

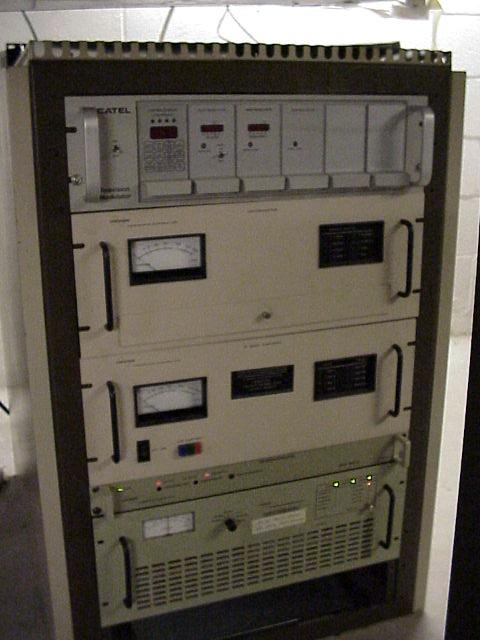

I think an off-the-air ITFS or MMDS transmitter

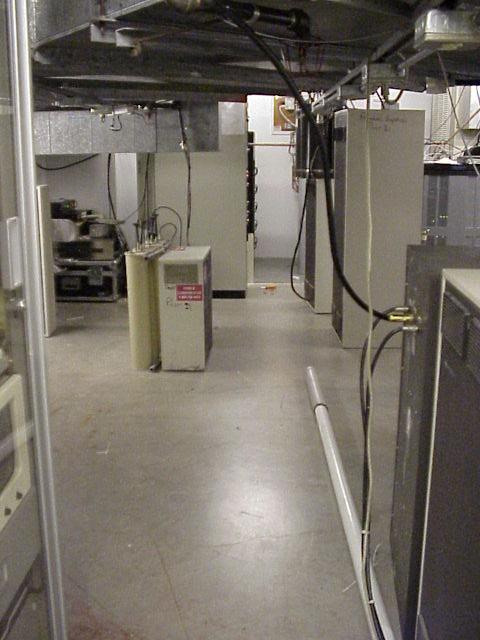

A view down the isle in transmitter room 1.   Low ceilings due to duct work.

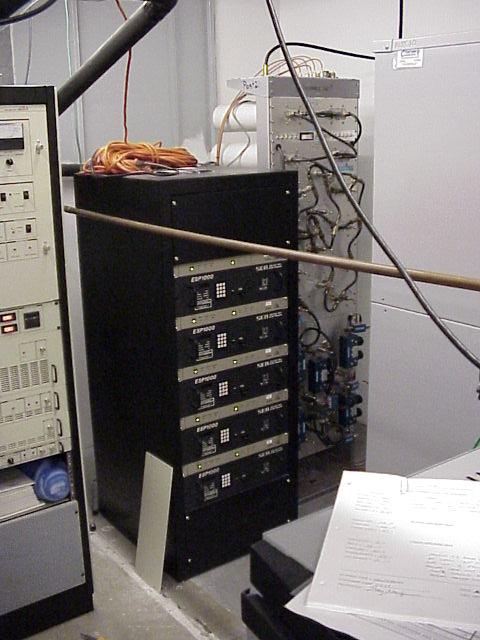

220 MHz Trunking system

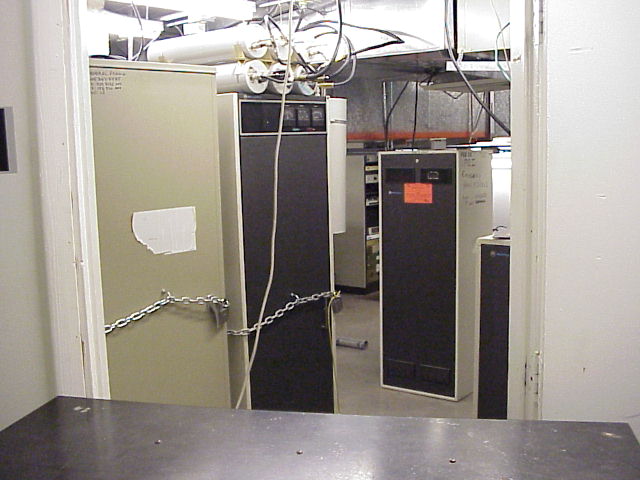

The view from the door of Transmitter room 1


A government repeater
